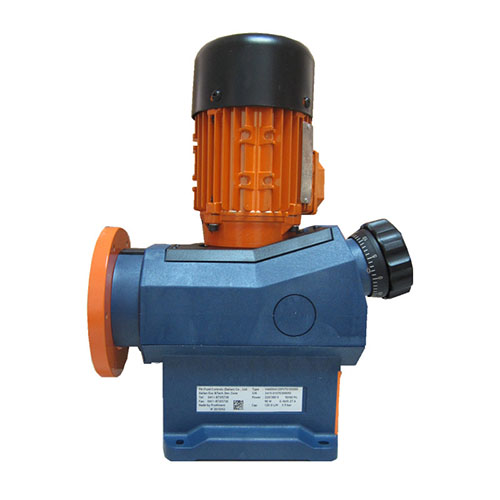

ProMinent Motor Driven Metering Pump Vario D
- Stroke length adjustment range: 0 – 100 %
- Stroke length adjustment: manually by means of self-locking rotary dial
- Metering reproducibility is better than ±2% in the 30 – 100% stroke length
adjustment range under defined conditions and with correct installation - Wetted materials: PVDF, stainless steel 1.4571/1.4404
- DEVELOPAN® diaphragm (single diaphragm with PTFE)
- Motor: Three-phase AC motor (0.07 KW, 230/400 V, 50/60 Hz) or
single-phase AC motor (0.06 kW, 230 V 50 Hz or 115 V 60 Hz) - Degree of protection: IP 55
- Fibreglass-reinforced plastic housing
- Provide suitable overload protection in all motor-driven metering pumps
during installation for safety reasons.
Technical Details
| Brand | ProMinent, Germany |
| Made in | China |
| Structure | motor driven diaphragm type |
| Capacity | 16.6-120L/h |
| Back pressure | 12-3.5bar |
| Liquid ends | PVDF head, PTFE seals |
| Power supply | 3PH 380V,50/60Hz or 1PH 220V 50Hz |
| Tube connections | 3/4"-DN10, 1"-DN15 |
| Protection class | IP55 |
| Insulation class | F |
| Control type | manual,external contact, 4-20mA anolog |
| Packaging type | carton |
| Delivery time | within 1 week |
| Warranty | 1 year from delivery date |
