Highlights

• ProMinent Germany technology, made in China, high quality but affordable
• Solenoid-driven positive displacement dosing pump, compact, reliable & durable
• Capacity range from 0.7 l/h to 23 l/h, at a max. backpressure of 1.5 bar to 16 bar
• Multiple choices of liquid end materials for anti -corrosion purpose
• Stroke length is adjustable manually from 0 to 100%
• Various stroke frequency control modes on request:
  3 constant metering frequencies manually: 100%, 50%, 25%
  Potential free contact input & 50%, 100% constant frequencies
  4-20mA input & 50%, 100% constant frequencies

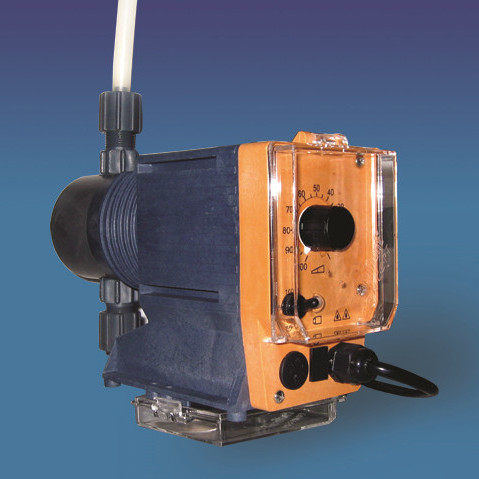

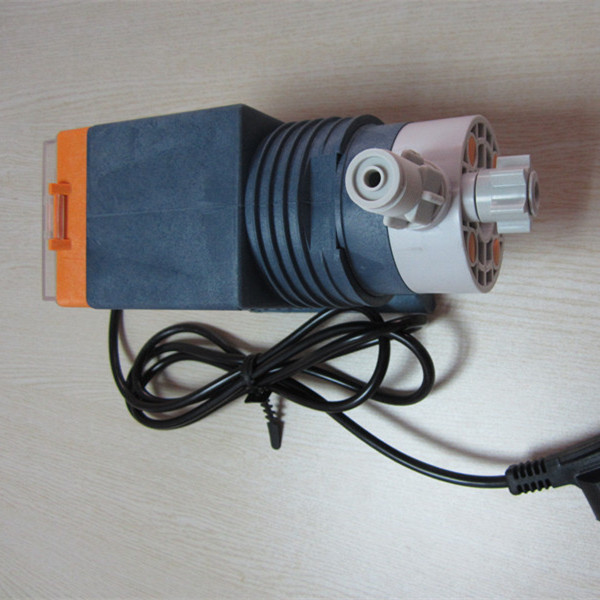

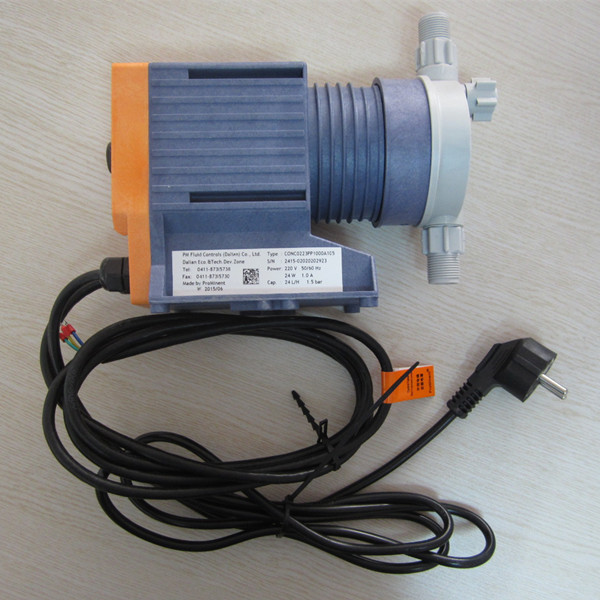

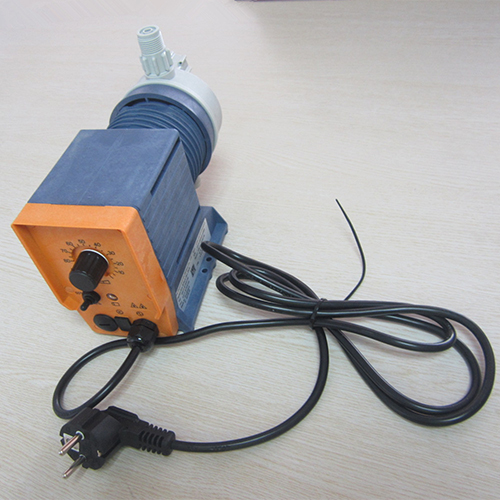

The CONC solenoid dosing pump is a microprocessor-controlled, short-stroke, solenoid-driven, diaphragm-type dosing pump for metering liquid, non-combustible media. It is popular to our customers for its precise design, reliable operation, good performance-cost ratio. It is widely applied to all kinds of chemicals dosing, with a good anti-corrosion performance of the liquid ends.
